დეტალური აღწერა
მახასიათებლები:
- ბრენდი: ENGENIUS NETWORKS

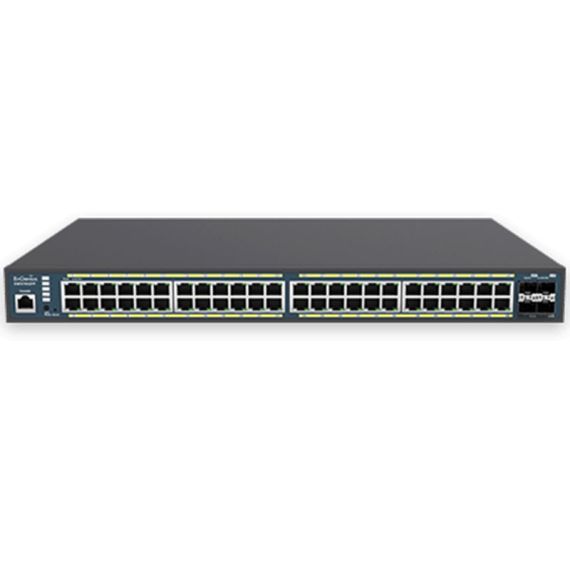

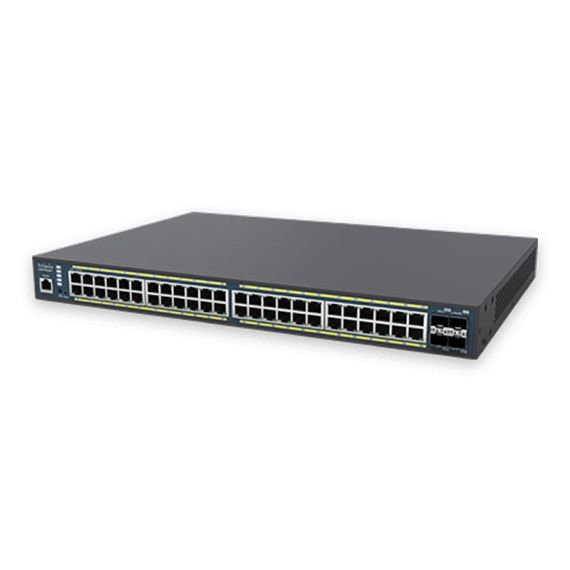

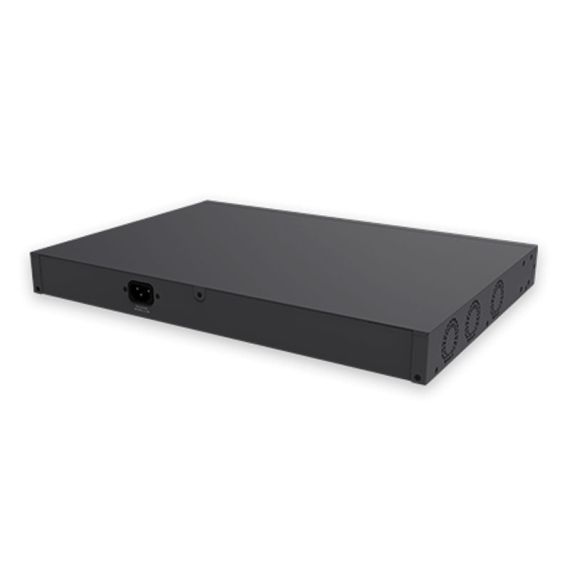

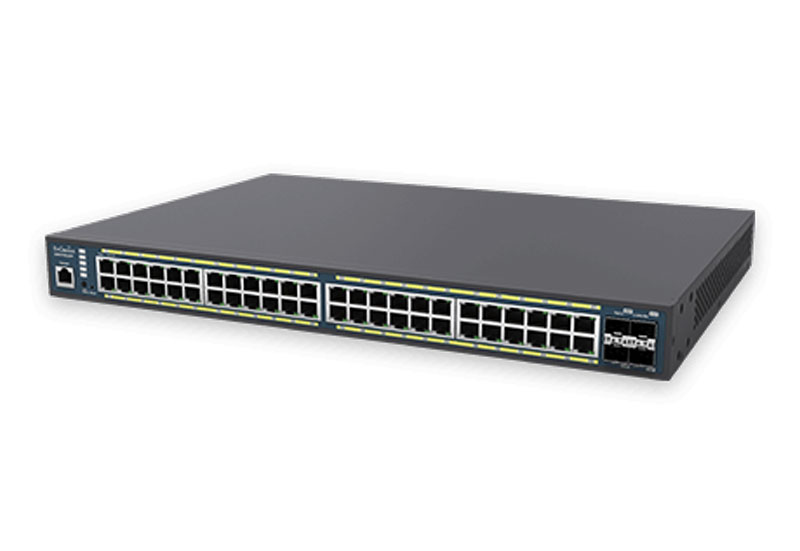

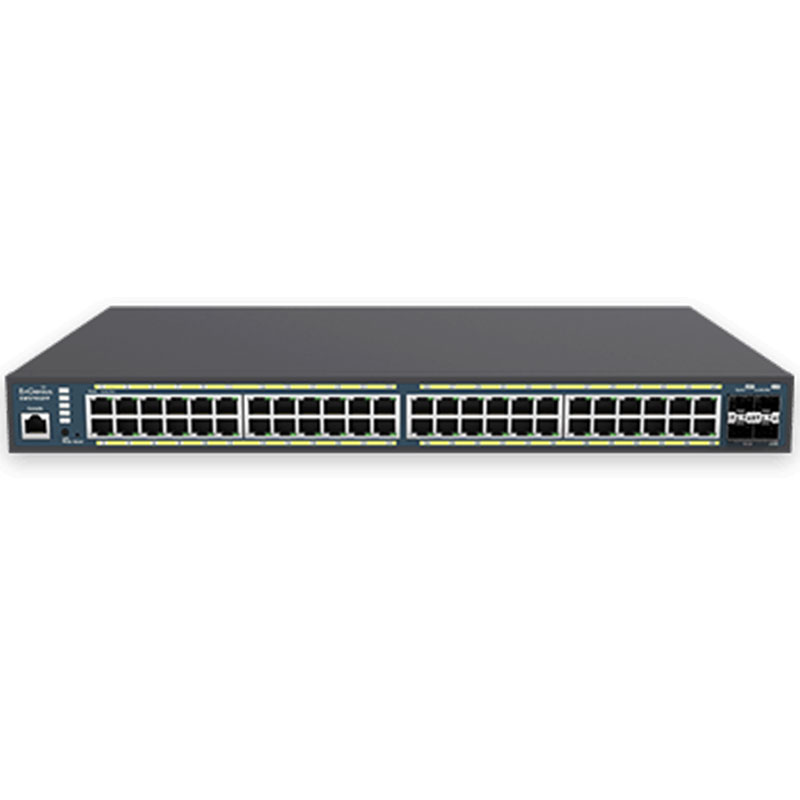

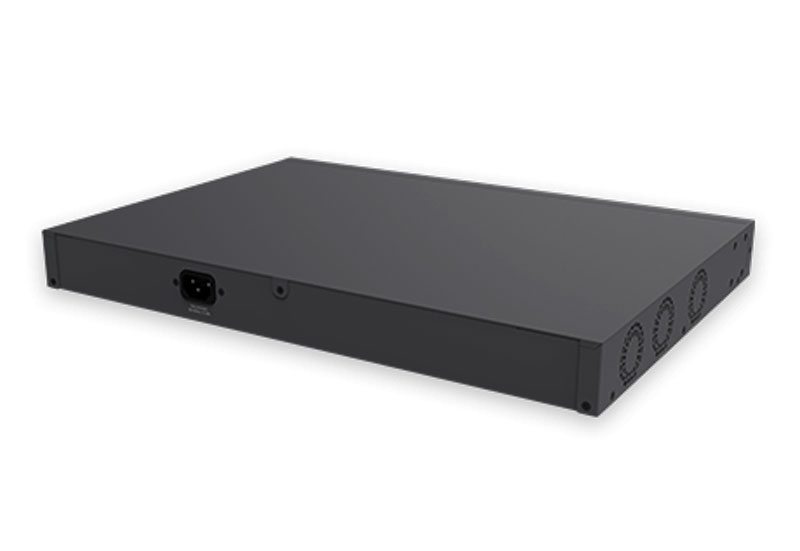

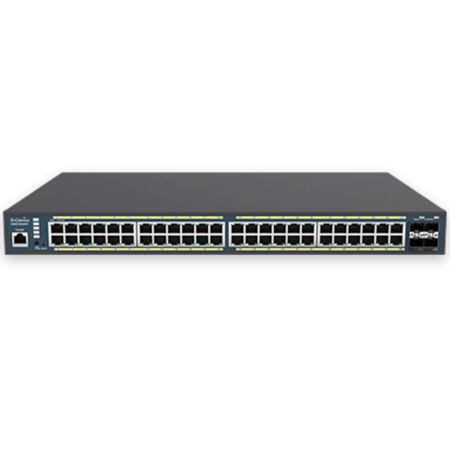

- მოდელი: EWS7952FP 50AP 48-PORT GBE POE.AT SWITCH 740W 4SFP L2 19I
- პროდუქტის ტიპი: სვიჩი
- Port Standards: 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
- Network Ports: 48 10/100/1000 Mbps Ports, 4 10/100/1000 Mbps SFP Ports, 1 RJ45 Console Port
- Switching Capacity: 104 Gbps
- Forwarding Mode: Store-and-Forward
- SDRAM: 256 MB
- Flash Memory: 32 MB
- Packet Buffer Memory: 1.5 MB
- Address Database Size: 8,000 MAC Addresses
- PoE Standard: Ports 1~48 Support IEEE 802.3af/at
- PoE Capable Ports: All Gigabit Ethernet Ports/Up to 30 W
- PoE Budget: 740 W
- Power Source: 100 ~ 240VAC, 50-60Hz 12A
- Physical Interface: LED Indicators, Reset Button, Desktop/Wall Mount
- Power LED
- Fault LED
- PoE Max LED
- LAN Mode LED
- PoE Mode LED
- Ports: Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
- L2 Features: 802.3ad Link Aggregation – Maximum of 8 Groups/8 Ports per Group
- Port Mirroring: One-to-One – Many-to-One
- Spanning Tree Protocol: 802.1D Spanning Tree Protocol (STP), 802.1w Rapid Spanning Tree Protocol (RSTP), 802.1s Multiple Spanning Tree Protocol (MSTP)
- MAC Address Table: 8K Entries
- Static MAC Address: 256 Entries
- 802.1ab Link Layer Discovery Protocol: IGMP Snooping, IGMP v1/v2/v3 Snooping, Supports 4094 IGMP Groups, IGMP per VLAN, IGMP nooping Query, IGMP Snooping Fast Leave
- MLD Snooping: MDL Snooping v1/v2, Supports 4,094 MLD Groups, IGMP per VLAN
- Jumbo Frame: Up to 9,216 bytes
- 802.3x Flow Control
- 802.3az Energy Efficient Ethernet
- VLAN
- 802.1Q Support
- VLAN Group: Max 4,094 Static VLAN Groups
- QoS: 802.1p Quality of Service, 8 Queues per Port
- Queue Handling: Strict, Weighted Round Robin (WRR)
- QoS Based on: 802.1p Priority, DSCP
- Bandwidth Control: Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)
- Access Control List (ACL): Layer 2/3 Supports a Maximum of 50 Entries (ACL), Supports a Maximum of 256 Entries (ACE)
- ACL Based on: – MAC Address– VLAN ID– 802.1p Priority – Ethertype– IP Address– Protocol Type– DSCP
- Security: 802.1X – Guest VLAN– Port-Based Access Control
- Port Security: Up to 256 MAC Addresses per Port
- Port Isolation
- DoS Attack Prevention
- BPDU Attack Prevention
- Monitoring
- Port Statistics
- System Log
- RMON
- Management: Web Graphical User Interface (GUI), Command Line Interface (CLI), BootP/DHCP Client/DHCPv6 Client, SSH Server, Telnet Server, TFTP Client, HTTPS
- SNMP: Supports v1/v2c/v3, SNMP Trap, SNTP, Configuration, Restore/Backup, Dual Images
- MIB/RFC Standards: RFC1213, RFC1493, RFC1757, RFC2674, RFC 2863
- ფერი: შავი
